SLR: Prediction + model evaluation

STA 210 - Summer 2022

Yunran Chen

Welcome

Questions from last week

  • In YAML, set format: pdf instead of pdf_format
  • set_engine: what alternatives? can use show_engines("linear_reg")
  • In R code chunk, can set #| message: false and #| warning: false
  • Two teams, check github!
  • Good news: set up Github Classroom! You can find your own repo and directly clone and edit! No need to fork anymore.

Computational setup

# load packages
library(tidyverse)   # for data wrangling and visualization
library(tidymodels)  # for modeling
library(usdata)      # for the county_2019 dataset
library(scales)      # for pretty axis labels
library(glue)        # for constructing character strings

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 16))

Application exercise

đź“‹ github.com/STA210-Summer22/ae-2-dcbikeshare

Can also keep working on your ae-1.

Uninsurance and high school graduation rates in NC

Data source

  • The data come from usdata::county_2019
  • These data have been compiled from the 2019 American Community Survey

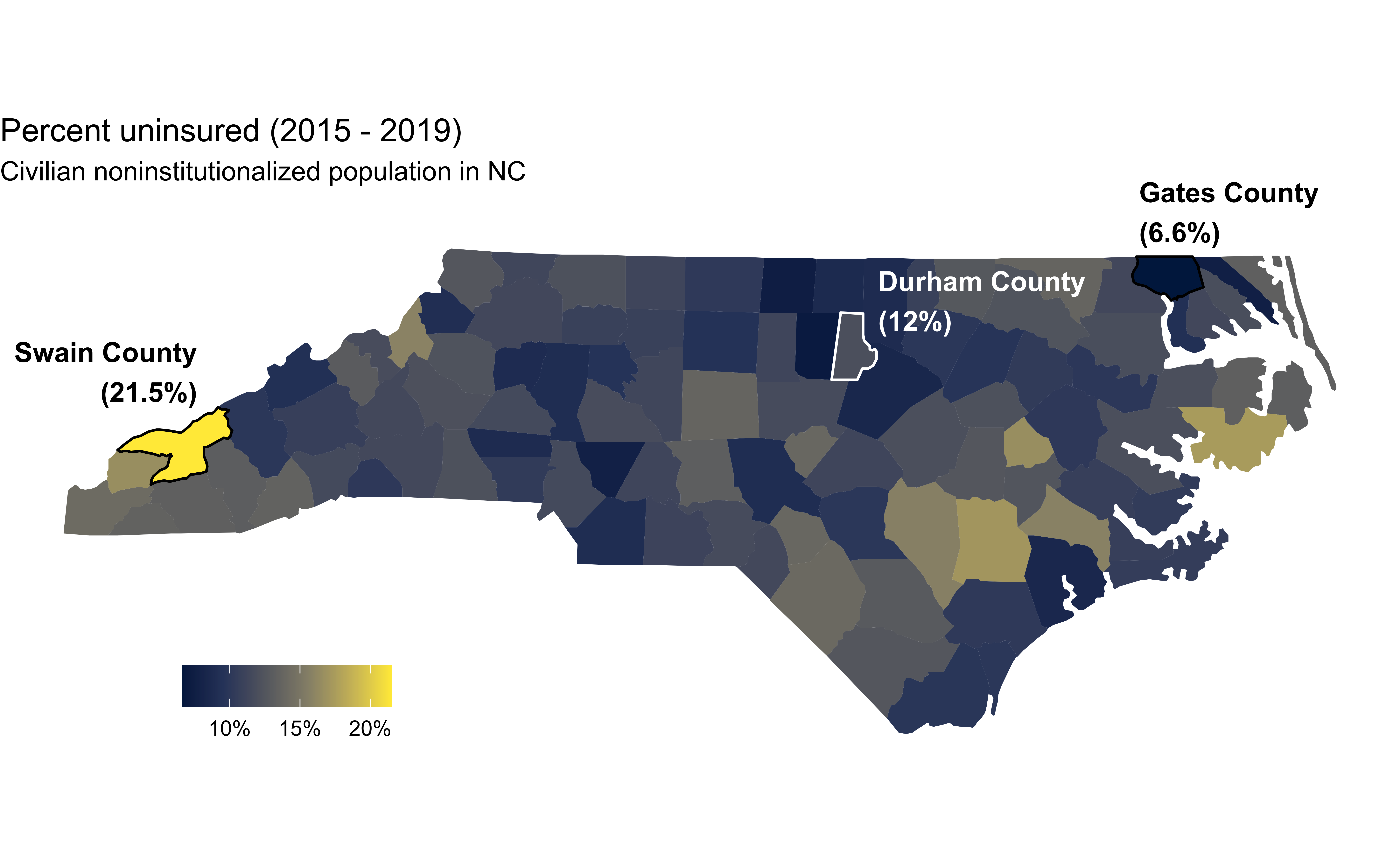

Uninsurance rate

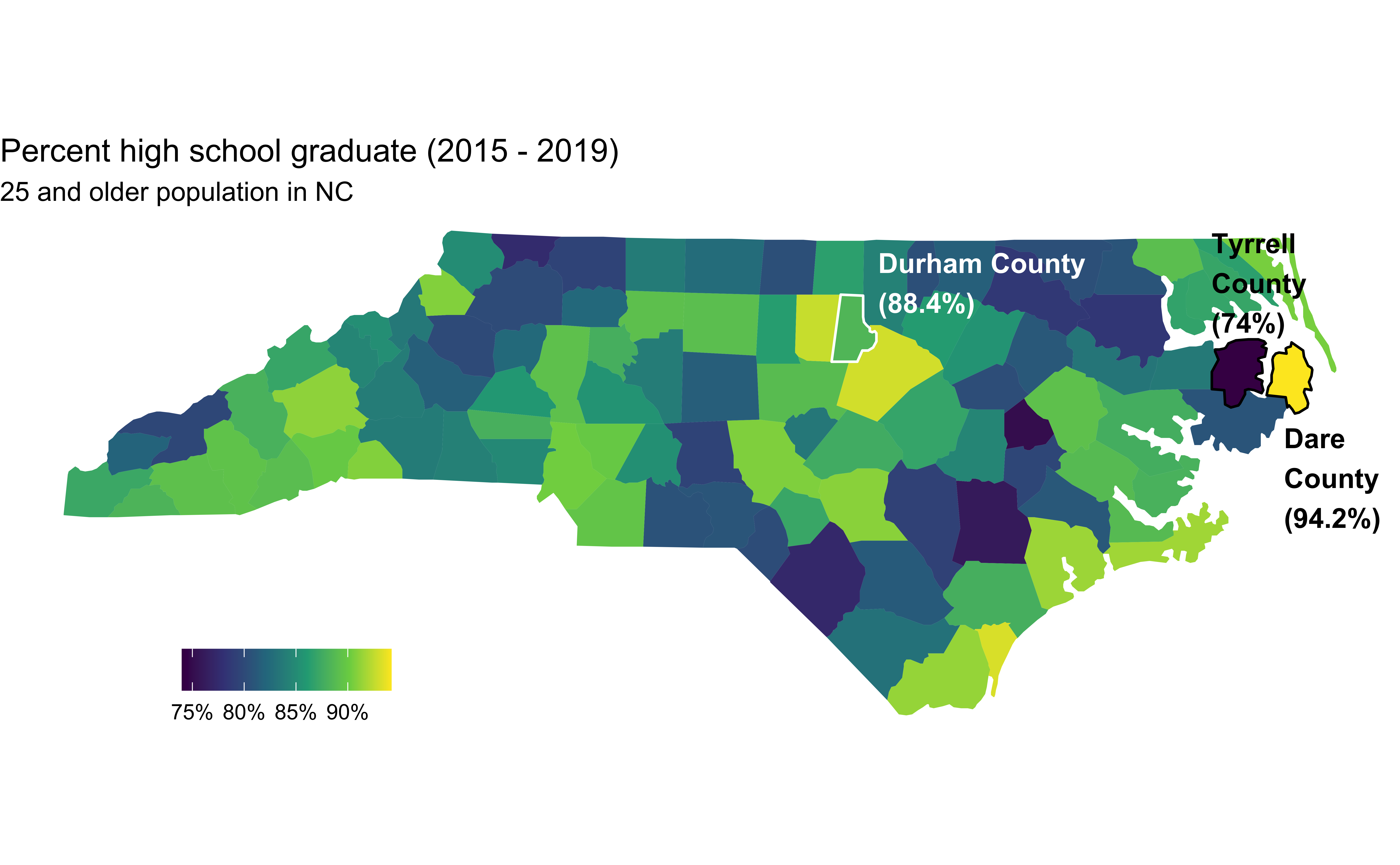

High school graduation rate

Examining the relationship

  • The NC Labor and Economic Analysis Division (LEAD), which “administers and collects data, conducts research, and publishes information on the state’s economy, labor force, educational, and workforce-related issues”.
  • Suppose that an analyst working for LEAD is interested in the relationship between uninsurance and high school graduation rates in NC counties.

What type of visualization should the analyst make to examine the relationship between these two variables?

Data prep

county_2019_nc <- county_2019 %>%
  as_tibble() %>%
  filter(state == "North Carolina") %>%
  select(name, hs_grad, uninsured)

county_2019_nc
# A tibble: 100 Ă— 3
   name             hs_grad uninsured
   <chr>              <dbl>     <dbl>
 1 Alamance County     86.3      11.2
 2 Alexander County    82.4       8.9
 3 Alleghany County    77.5      11.3
 4 Anson County        80.7      11.1
 5 Ashe County         85.1      12.6
 6 Avery County        83.6      15.9
 7 Beaufort County     87.7      12
 8 Bertie County       78.4      11.9
 9 Bladen County       81.3      12.9
10 Brunswick County    91.3       9.8
# … with 90 more rows

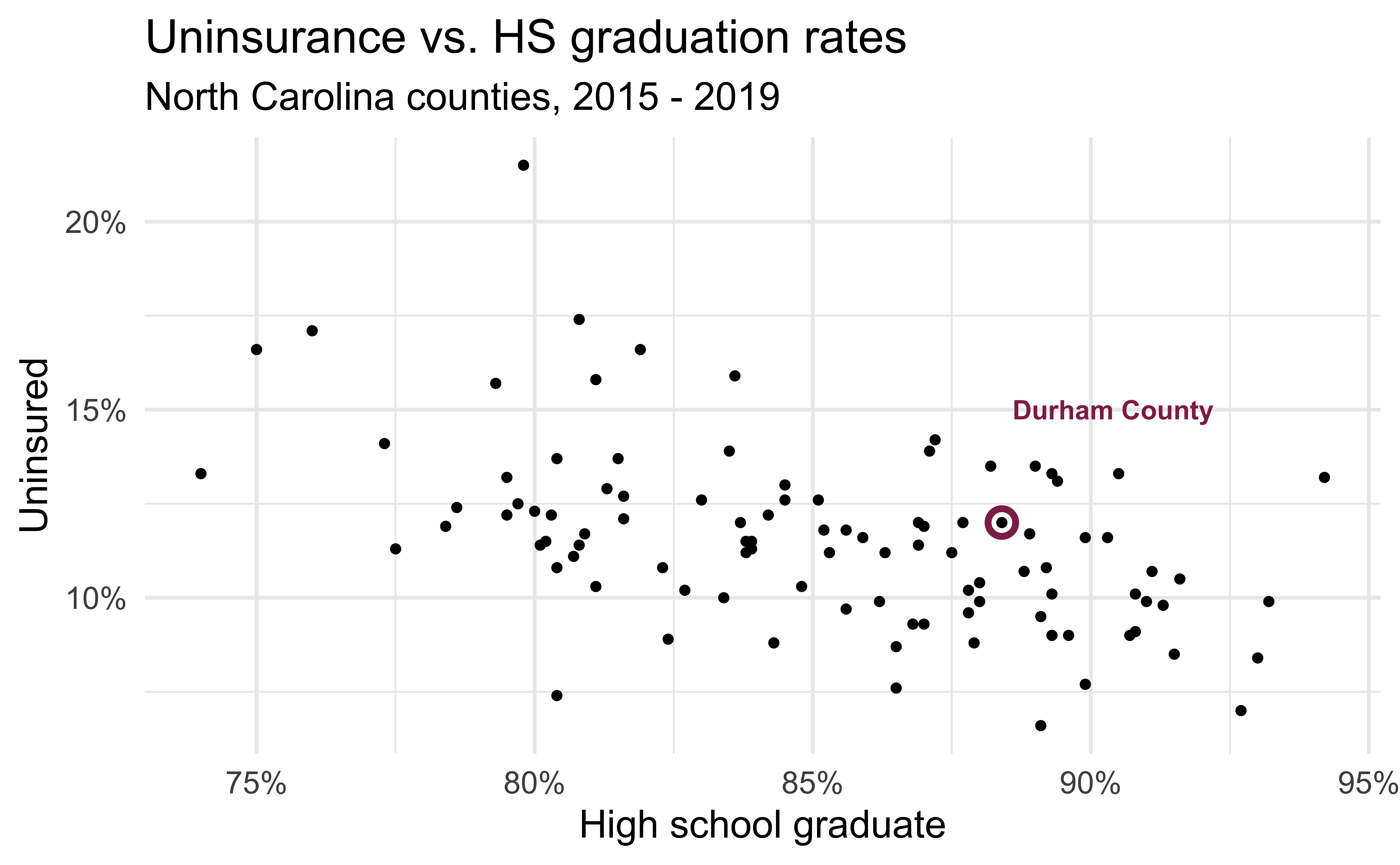

Uninsurance vs. HS graduation rates

Code
ggplot(county_2019_nc,
       aes(x = hs_grad, y = uninsured)) +
  geom_point() +
  scale_x_continuous(labels = label_percent(scale = 1, accuracy = 1)) +
  scale_y_continuous(labels = label_percent(scale = 1, accuracy = 1)) +
  labs(
    x = "High school graduate", y = "Uninsured",
    title = "Uninsurance vs. HS graduation rates",
    subtitle = "North Carolina counties, 2015 - 2019"
  ) +
  geom_point(data = county_2019_nc %>% filter(name == "Durham County"), aes(x = hs_grad, y = uninsured), shape = "circle open", color = "#8F2D56", size = 4, stroke = 2) +
  geom_text(data = county_2019_nc %>% filter(name == "Durham County"), aes(x = hs_grad, y = uninsured, label = name), color = "#8F2D56", fontface = "bold", nudge_y = 3, nudge_x = 2)

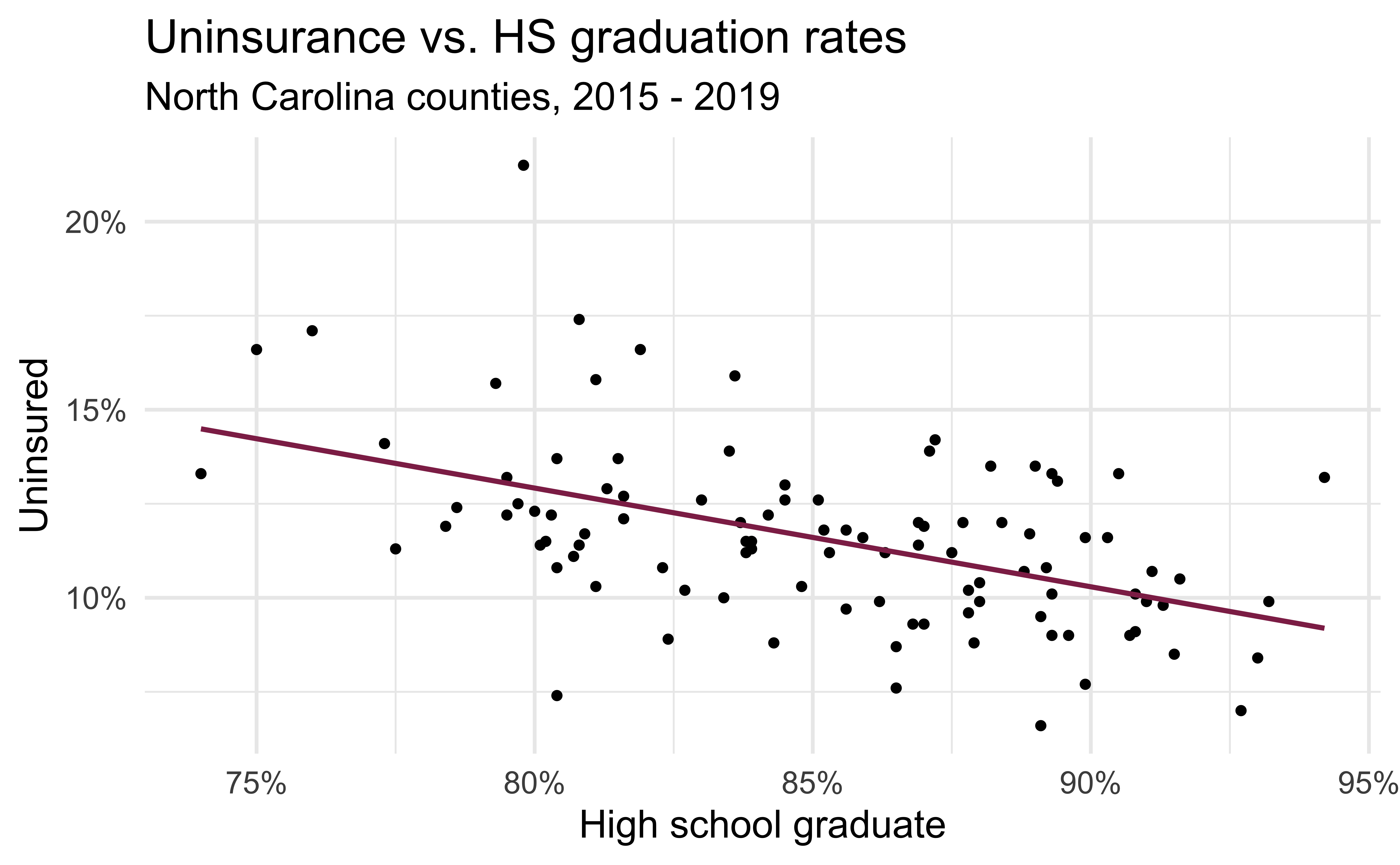

Modeling the relationship

Code
ggplot(county_2019_nc, aes(x = hs_grad, y = uninsured)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE, color = "#8F2D56") +
  scale_x_continuous(labels = label_percent(scale = 1, accuracy = 1)) +
  scale_y_continuous(labels = label_percent(scale = 1, accuracy = 1)) +
  labs(
    x = "High school graduate", y = "Uninsured",
    title = "Uninsurance vs. HS graduation rates",
    subtitle = "North Carolina counties, 2015 - 2019"
  )

Fitting the model

With fit():

nc_fit <- linear_reg() %>%
  set_engine("lm") %>%
  fit(uninsured ~ hs_grad, data = county_2019_nc)

tidy(nc_fit)
# A tibble: 2 Ă— 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)   33.9      3.99        8.50 2.12e-13
2 hs_grad       -0.262    0.0468     -5.61 1.88e- 7

Augmenting the data

With augment() to add columns for predicted values (.fitted), residuals (.resid), etc.:

nc_aug <- augment(nc_fit$fit)
nc_aug
# A tibble: 100 Ă— 8
   uninsured hs_grad .fitted  .resid   .hat .sigma    .cooksd .std.resid
       <dbl>   <dbl>   <dbl>   <dbl>  <dbl>  <dbl>      <dbl>      <dbl>
 1      11.2    86.3   11.3  -0.0633 0.0107   2.10 0.00000501    -0.0305
 2       8.9    82.4   12.3  -3.39   0.0138   2.07 0.0186        -1.63
 3      11.3    77.5   13.6  -2.27   0.0393   2.09 0.0252        -1.11
 4      11.1    80.7   12.7  -1.63   0.0199   2.09 0.00633       -0.790
 5      12.6    85.1   11.6   1.02   0.0100   2.10 0.00122        0.492
 6      15.9    83.6   12.0   3.93   0.0112   2.06 0.0203         1.89
 7      12      87.7   10.9   1.10   0.0133   2.10 0.00191        0.532
 8      11.9    78.4   13.3  -1.44   0.0328   2.09 0.00830       -0.700
 9      12.9    81.3   12.6   0.324  0.0174   2.10 0.000218       0.157
10       9.8    91.3    9.95 -0.151  0.0291   2.10 0.0000806     -0.0734
# … with 90 more rows

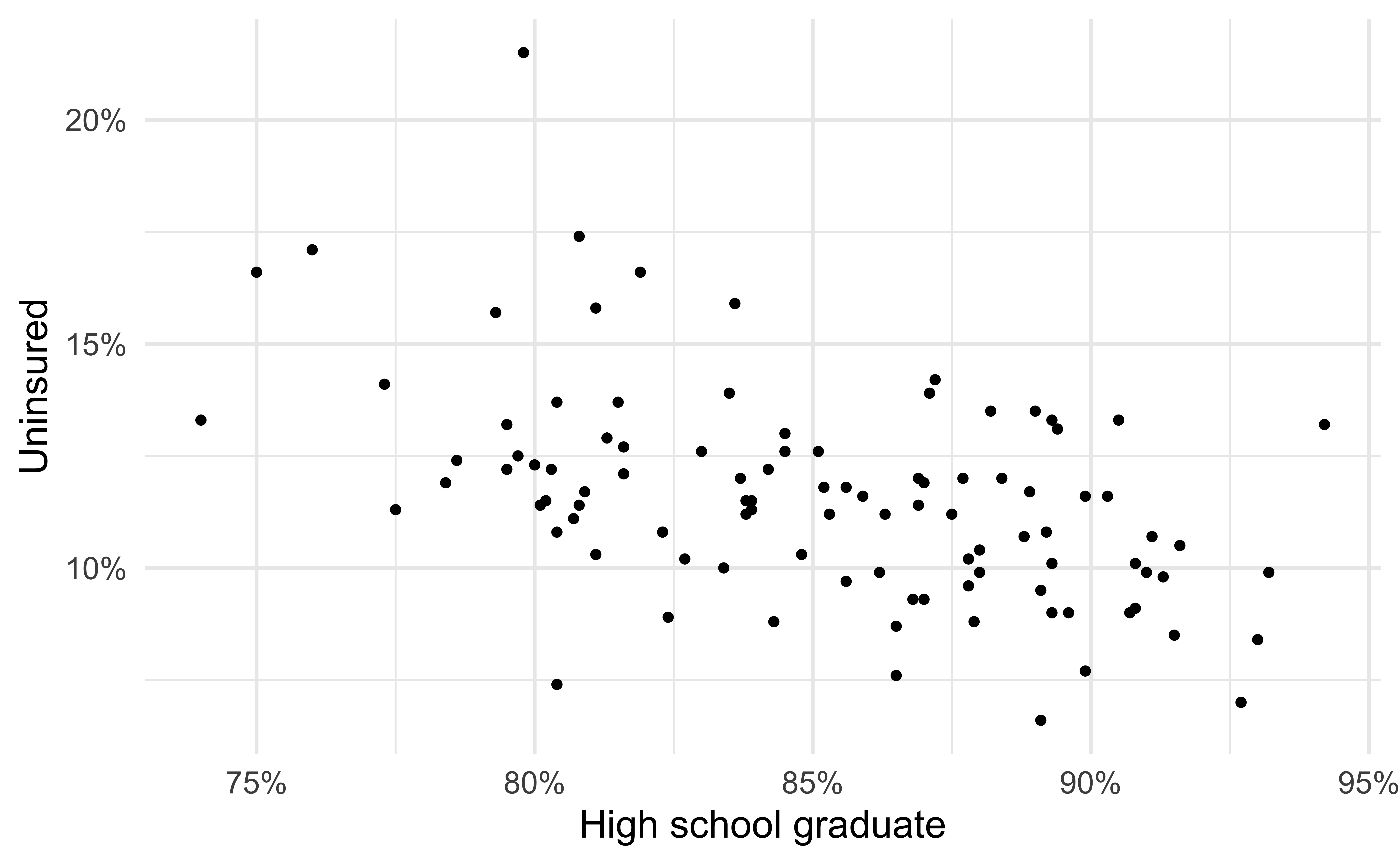

Visualizing the model I

  • Black circles: Observed values (y = uninsured)

Visualizing the model II

  • Black circles: Observed values (y = uninsured)
  • Pink solid line: Least squares regression line

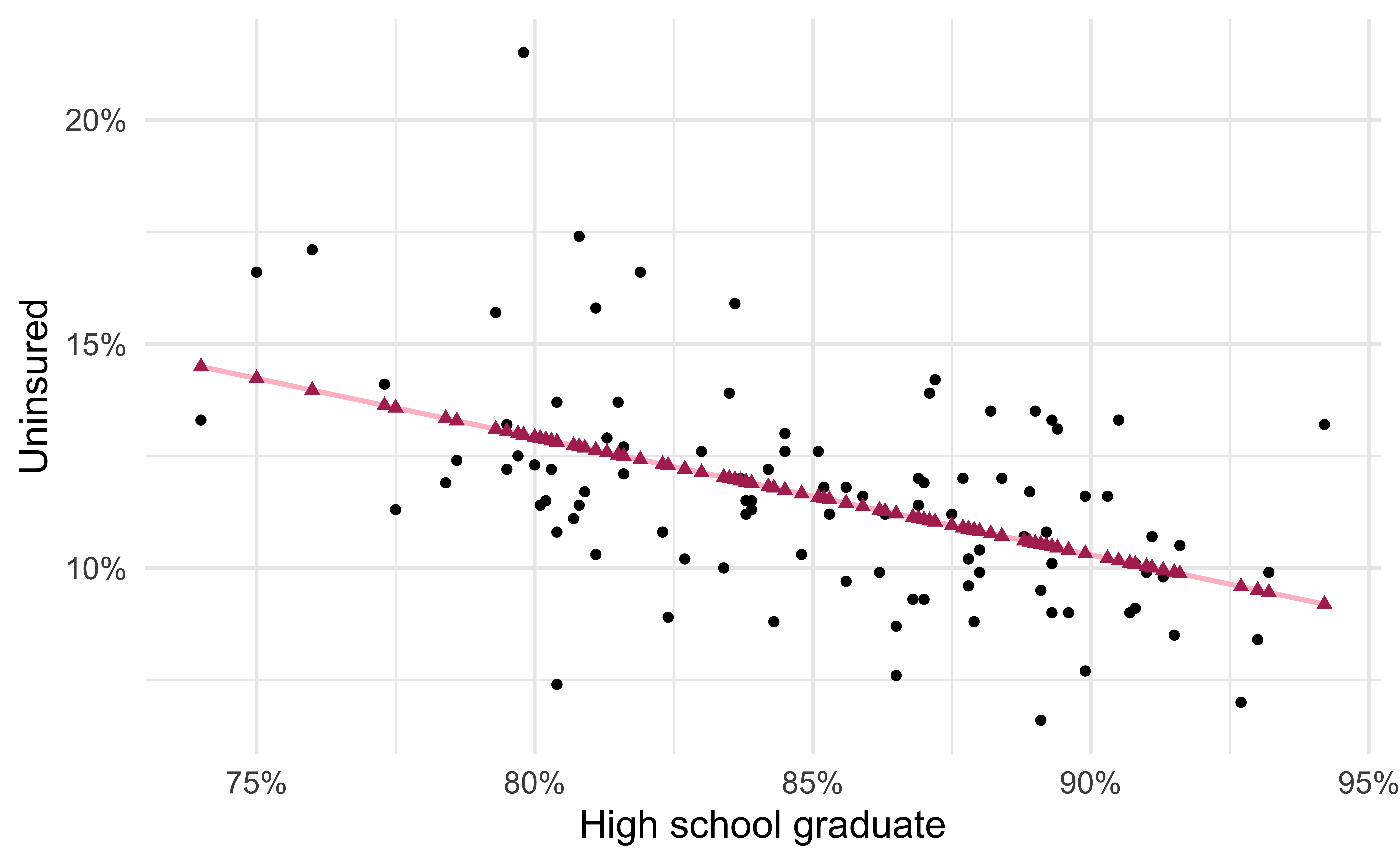

Visualizing the model III

  • Black circles: Observed values (y = uninsured)
  • Pink solid line: Least squares regression line
  • Maroon triangles: Predicted values (y = .fitted)

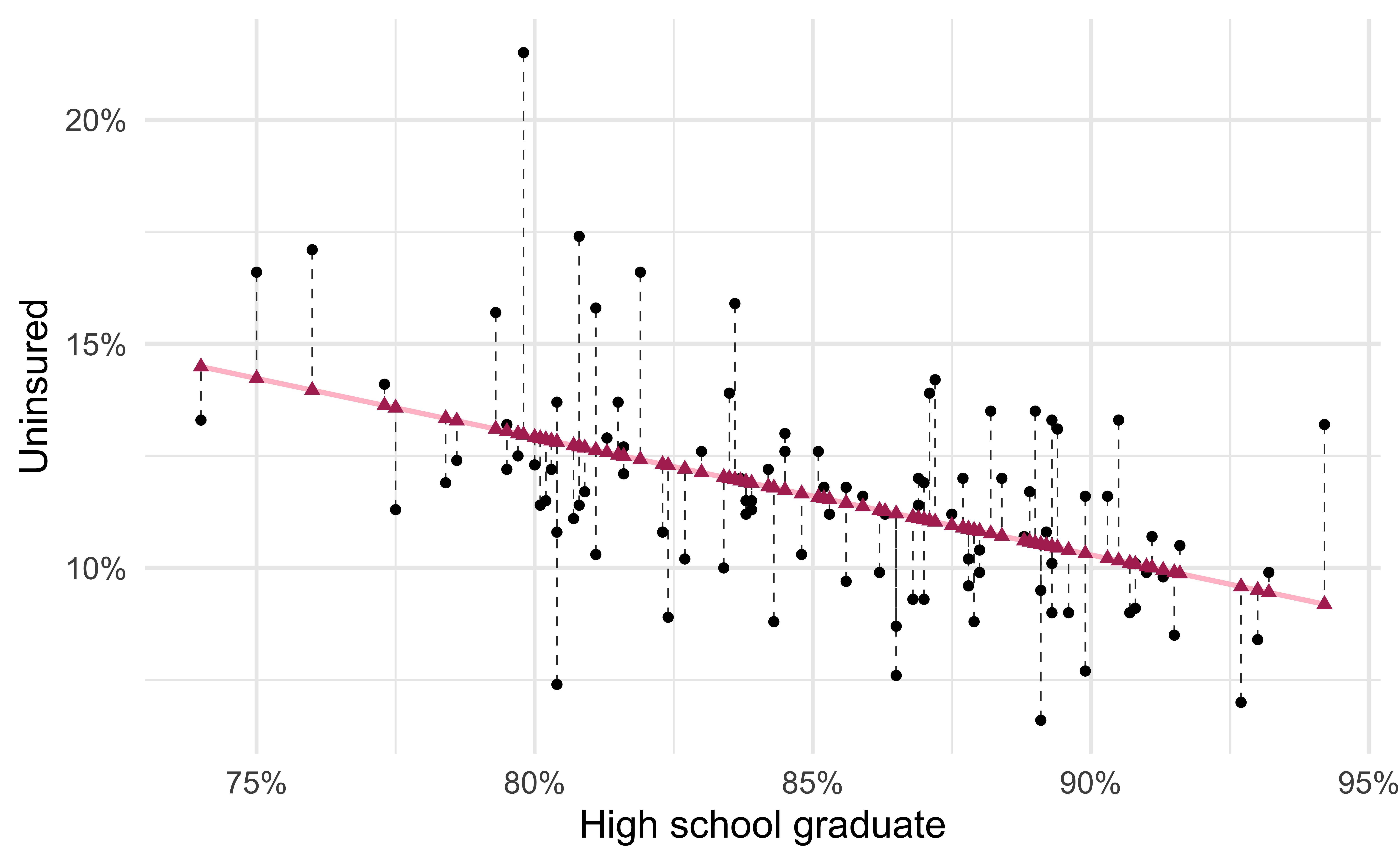

Visualizing the model IV

  • Black circles: Observed values (y = uninsured)
  • Pink solid line: Least squares regression line
  • Maroon triangles: Predicted values (y = .fitted)
  • Gray dashed lines: Residuals

Evaluating the model fit

How can we evaluate whether the model for predicting uninsurance rate from high school graduation rate for NC counties is a good fit?

Model evaluation

Two statistics

  • R-squared, \(R^2\) : Percentage of variability in the outcome explained by the regression model (in the context of SLR, the predictor)

    \[ R^2 = Cor(x,y)^2 = Cor(y, \hat{y})^2 \]

  • Root mean square error, RMSE: A measure of the average error (average difference between observed and predicted values of the outcome)

    \[ RMSE = \sqrt{\frac{\sum_{i = 1}^n (y_i - \hat{y}_i)^2}{n}} \]

What indicates a good model fit? Higher or lower \(R^2\)? Higher or lower RMSE?

R-squared

  • Ranges between 0 (terrible predictor) and 1 (perfect predictor)

  • Unitless (Having no units of measurement; such as a ratio or percentage of two numbers which have the same units.)

  • Calculate with rsq():

    rsq(nc_aug, truth = uninsured, estimate = .fitted)
    # A tibble: 1 Ă— 3
      .metric .estimator .estimate
      <chr>   <chr>          <dbl>
    1 rsq     standard       0.243

Interpreting R-squared

🗳️ Vote

The \(R^2\) of the model for predicting uninsurance rate from high school graduation rate for NC counties is 24.3%. Which of the following is the correct interpretation of this value?

  • High school graduation rates correctly predict 24.3% of uninsurance rates in NC counties.
  • 24.3% of the variability in uninsurance rates in NC counties can be explained by high school graduation rates.
  • 24.3% of the variability in high school graduation rates in NC counties can be explained by uninsurance rates.
  • 24.3% of the time uninsurance rates in NC counties can be predicted by high school graduation rates.

Alternative approach for R-squared

Alternatively, use glance() to construct a single row summary of the model fit, including \(R^2\):

glance(nc_fit)
# A tibble: 1 Ă— 12
  r.squared adj.r.squared sigma statistic     p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>       <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.243         0.235  2.09      31.5 0.000000188     1  -214.  435.  443.
# … with 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>
glance(nc_fit)$r.squared
[1] 0.2430694

RMSE

  • Ranges between 0 (perfect predictor) and infinity (terrible predictor)

  • Same units as the outcome variable

  • Calculate with rmse():

    rmse(nc_aug, truth = uninsured, estimate = .fitted)
    # A tibble: 1 Ă— 3
      .metric .estimator .estimate
      <chr>   <chr>          <dbl>
    1 rmse    standard        2.07
  • The value of RMSE is not very meaningful on its own, but it’s useful for comparing across models (more on this when we get to regression with multiple predictors)

Obtaining R-squared and RMSE

  • Use rsq() and rmse(), respectively

    rsq(nc_aug, truth = uninsured, estimate = .fitted)
    rmse(nc_aug, truth = uninsured, estimate = .fitted)
  • First argument: data frame containing truth and estimate columns

  • Second argument: name of the column containing truth (observed outcome)

  • Third argument: name of the column containing estimate (predicted outcome)

Purpose of model evaluation

  • \(R^2\) tells us how our model is doing to predict the data we already have
  • But generally we are interested in prediction for a new observation, not for one that is already in our sample, i.e. out-of-sample prediction
  • We have a couple ways of simulating out-of-sample prediction before actually getting new data to evaluate the performance of our models

Splitting data

Spending our data

  • There are several steps to create a useful model: parameter estimation, model selection, performance assessment, etc.
  • Doing all of this on the entire data we have available leaves us with no other data to assess our choices
  • We can allocate specific subsets of data for different tasks, as opposed to allocating the largest possible amount to the model parameter estimation only (which is what we’ve done so far)

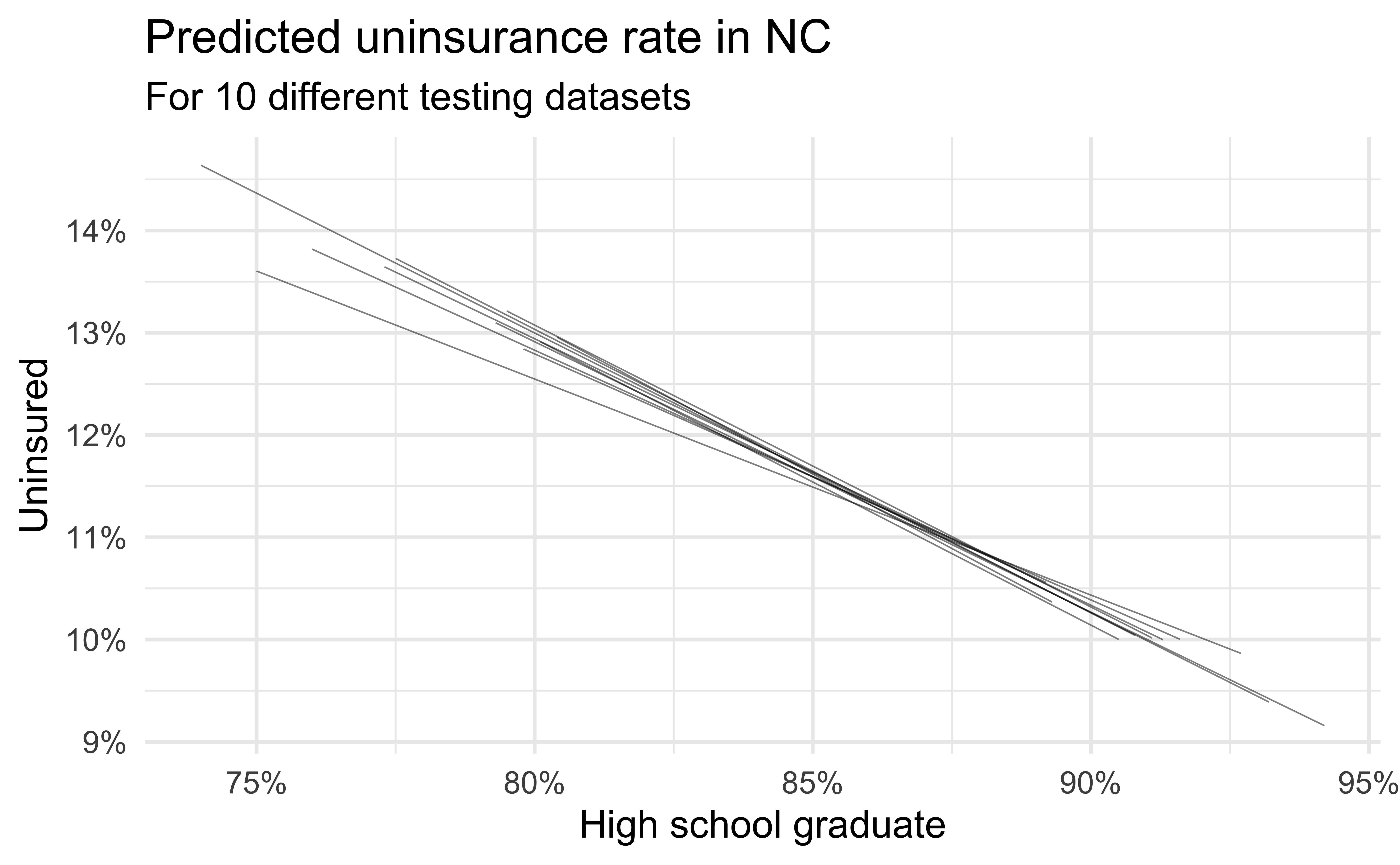

Simulation: data splitting

  • Take a random sample of 10% of the data and set aside (testing data)
  • Fit a model on the remaining 90% of the data (training data)
  • Use the coefficients from this model to make predictions for the testing data
  • Repeat 10 times

Predictive performance

  • How consistent are the predictions for different testing datasets?
  • How consistent are the predictions for counties with high school graduation rates in the middle of the plot vs. in the edges?

Bootstrapping

Bootstrapping our data

  • The idea behind bootstrapping is that if a given observation exists in a sample, there may be more like it in the population
  • With bootstrapping, we simulate resampling from the population by resampling from the sample we observed
  • Bootstrap samples are the sampled with replacement from the original sample and same size as the original sample
    • For example, if our sample consists of the observations {A, B, C}, bootstrap samples could be {A, A, B}, {A, C, A}, {B, C, C}, {A, B, C}, etc.

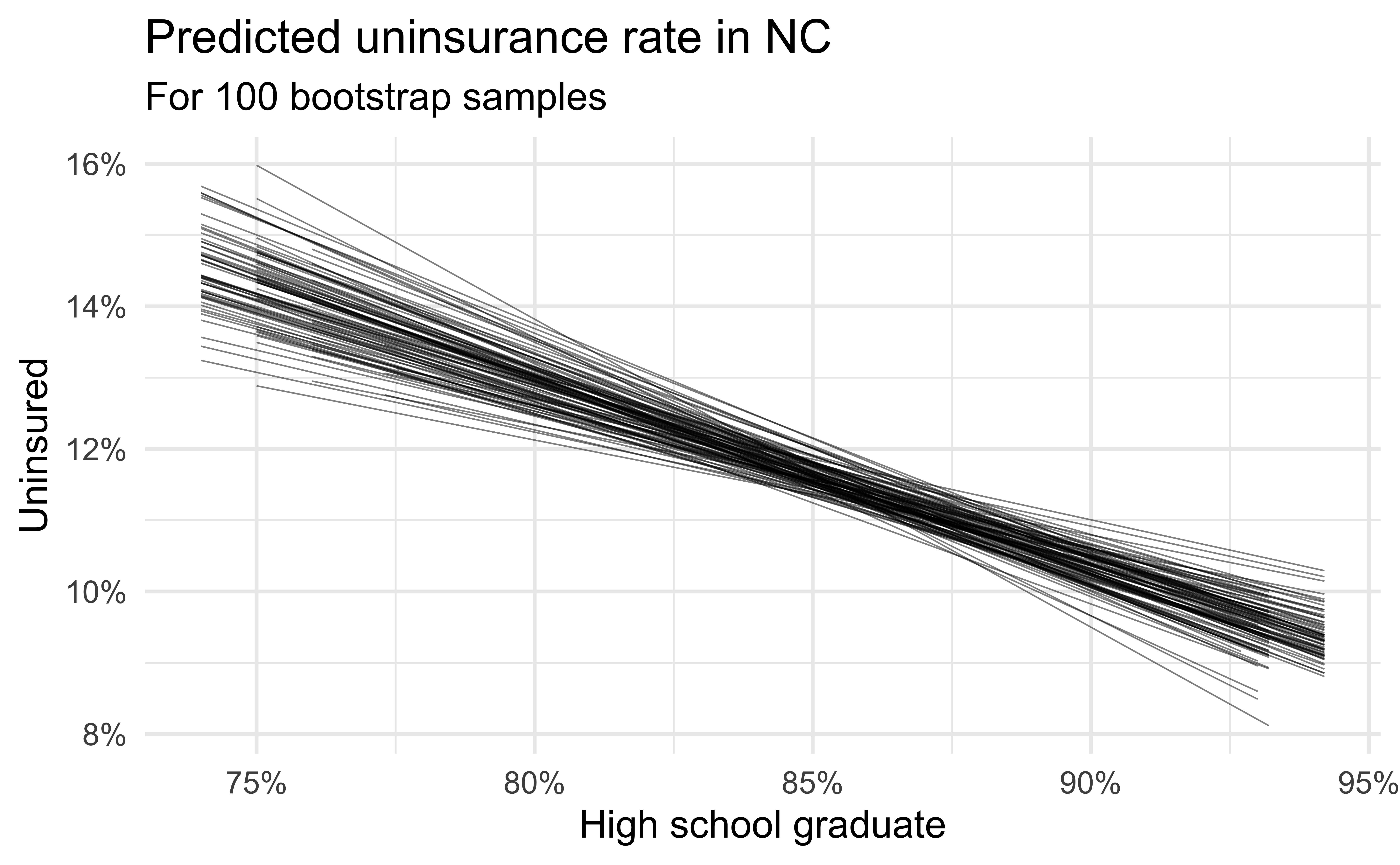

Simulation: bootstrapping

  • Take a bootstrap sample – sample with replacement from the original data, same size as the original data
  • Fit model to the sample and make predictions for that sample
  • Repeat many times

Predictive performance

  • How consistent are the predictions for different bootstrap datasets?
  • How consistent are the predictions for counties with high school graduation rates in the middle of the plot vs. in the edges?
