Logistic regression

STA 210 - Summer 2022

Yunran Chen

Welcome

Announcements

Any questions on project proposals?
Exam 2 is due on 11:59 pm today.

Topics

Logistic regression for binary response variable
Relationship between odds and probabilities
Use logistic regression model to calculate predicted odds and probabilities

Computational setup

# load packages
library(tidyverse)
library(tidymodels)
library(knitr)
library(Stat2Data)

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 20))

Predicting categorical outcomes

Types of outcome variables

Quantitative outcome variable:

Sales price of a house in Levittown, NY
Model: Expected sales price given the number of bedrooms, lot size, etc.

Categorical outcome variable:

High risk of coronary heart disease
Model: Probability an adult is high risk of heart disease given their age, total cholesterol, etc.

Models for categorical outcomes

Logistic regression

2 Outcomes

1: Yes, 0: No

Multinomial logistic regression

3+ Outcomes

1: Democrat, 2: Republican, 3: Independent

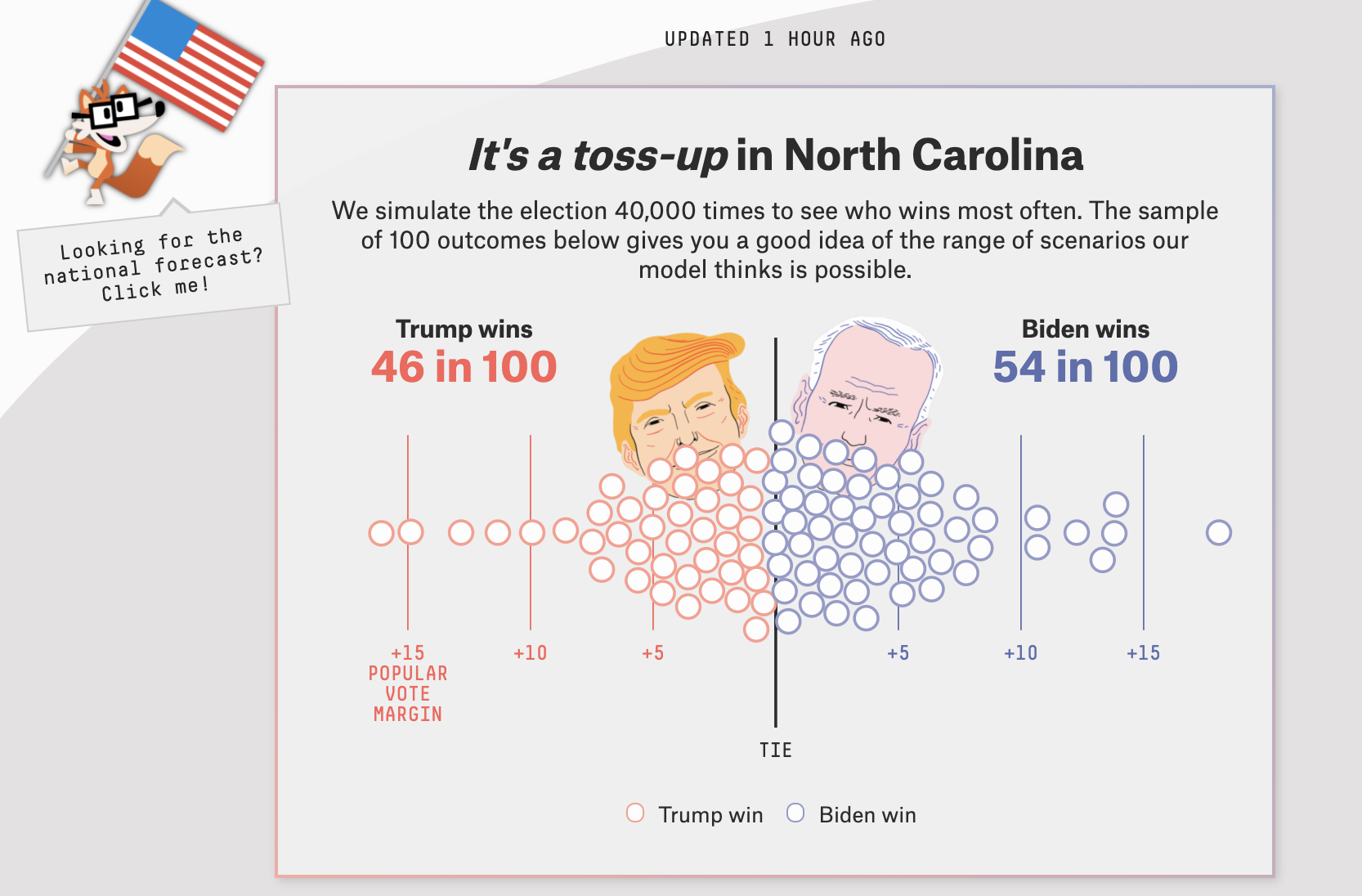

2020 election forecasts

Source: FiveThirtyEight Election Forcasts

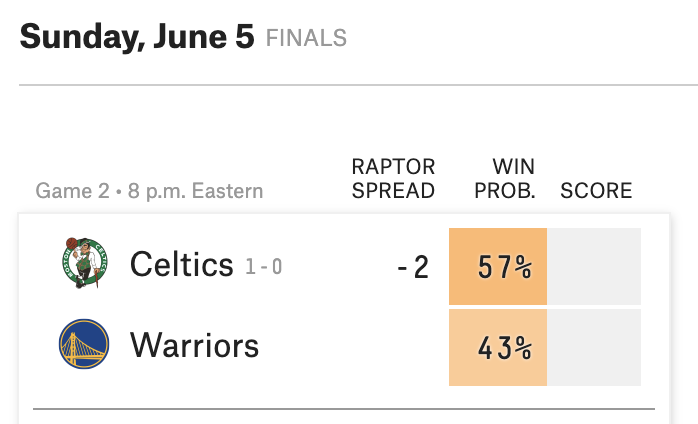

NBA finals predictions

Source: FiveThirtyEight 2021-22 NBA Predictions

Do teenagers get 7+ hours of sleep?

Students in grades 9 - 12 surveyed about health risk behaviors including whether they usually get 7 or more hours of sleep.

Sleep7

1: yes

0: no

data(YouthRisk2009)
sleep <- YouthRisk2009 %>%
  as_tibble() %>%
  filter(!is.na(Age), !is.na(Sleep7))
sleep %>%
  relocate(Age, Sleep7)

# A tibble: 446 × 6
     Age Sleep7 Sleep           SmokeLife SmokeDaily MarijuaEver
   <int>  <int> <fct>           <fct>     <fct>            <int>
 1    16      1 8 hours         Yes       Yes                  1
 2    17      0 5 hours         Yes       Yes                  1
 3    18      0 5 hours         Yes       Yes                  1
 4    17      1 7 hours         Yes       No                   1
 5    15      0 4 or less hours No        No                   0
 6    17      0 6 hours         No        No                   0
 7    17      1 7 hours         No        No                   0
 8    16      1 8 hours         Yes       No                   0
 9    16      1 8 hours         No        No                   0
10    18      0 4 or less hours Yes       Yes                  1
# … with 436 more rows

Plot the data

ggplot(sleep, aes(x = Age, y = Sleep7)) +
  geom_point() +
  labs(y = "Getting 7+ hours of sleep")

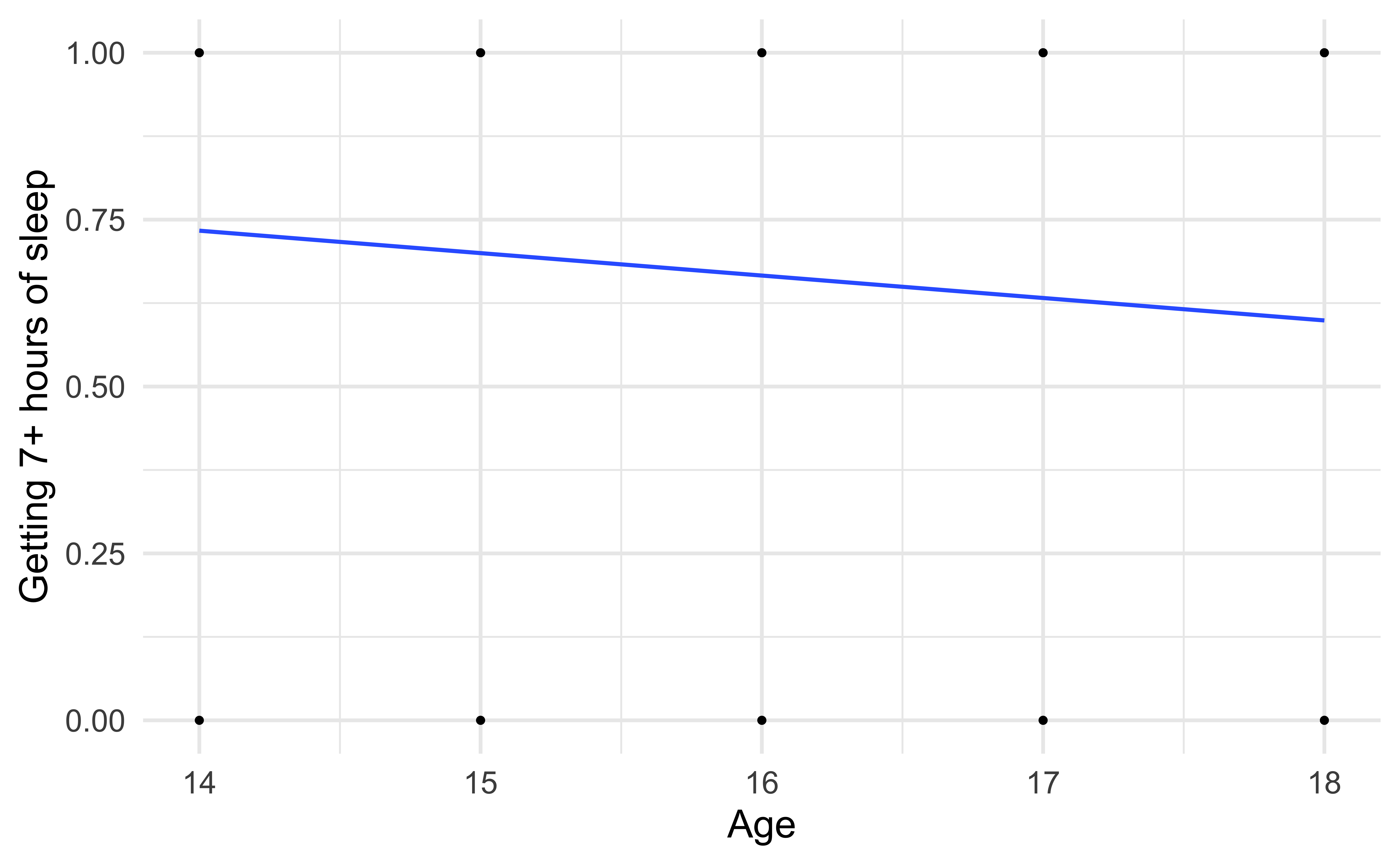

Let’s fit a linear regression model

Outcome: \(Y\) = 1: yes, 0: no

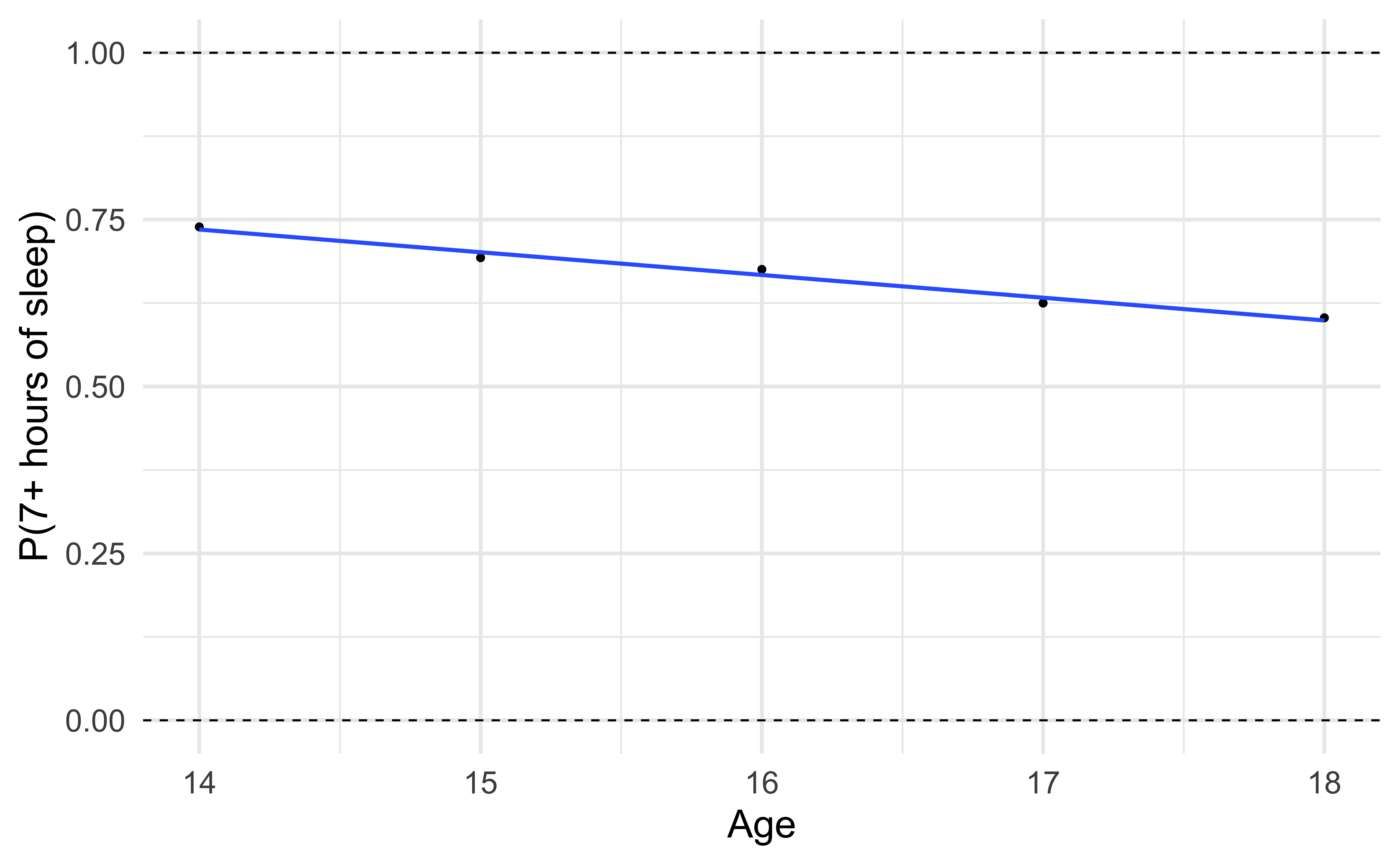

Let’s use proportions

Outcome: Probability of getting 7+ hours of sleep

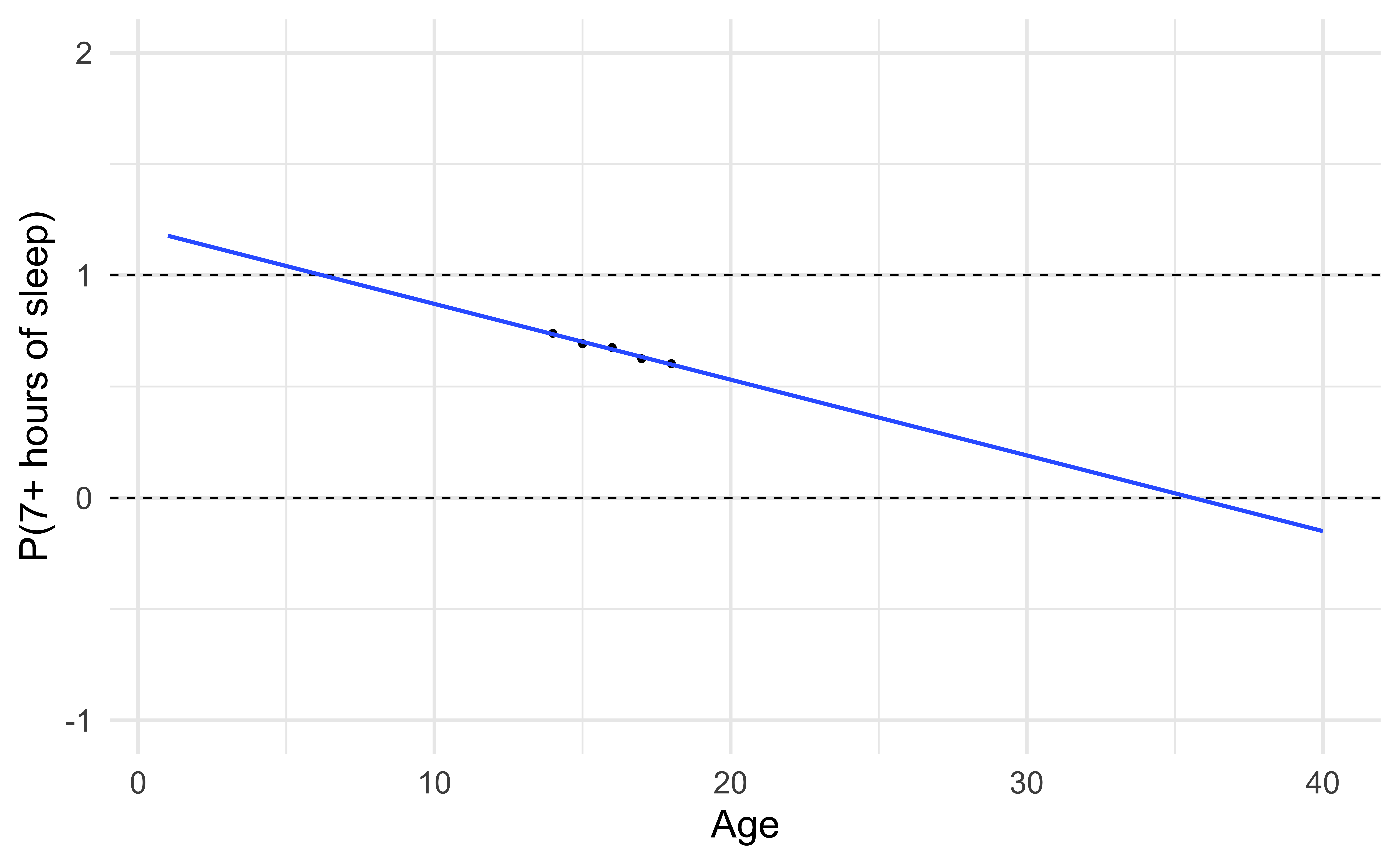

What happens if we zoom out?

Outcome: Probability of getting 7+ hours of sleep

🛑 This model produces predictions outside of 0 and 1.

Let’s try another model

✅ This model (called a logistic regression model) only produces predictions between 0 and 1.

The code

ggplot(sleep_age, aes(x = Age, y = prop)) +
  geom_point() +
  geom_hline(yintercept = c(0,1), lty = 2) +
  stat_smooth(method ="glm", method.args = list(family = "binomial"),
              fullrange = TRUE, se = FALSE) +
  labs(y = "P(7+ hours of sleep)") +
  xlim(1, 40) +
  ylim(-0.5, 1.5)

Different types of models

Method	Outcome	Model
Linear regression	Quantitative	\(Y = \beta_0 + \beta_1~ X\)
Logistic regression	Binary	\(\log\big(\frac{\pi}{1-\pi}\big) = \beta_0 + \beta_1 ~ X\)

Odds and probabilities

Binary response variable

\(Y = 1: \text{ yes}, 0: \text{ no}\)
\(\pi\): probability that \(Y=1\), i.e., \(P(Y = 1)\)
\(\frac{\pi}{1-\pi}\): odds that \(Y = 1\)
\(\log\big(\frac{\pi}{1-\pi}\big)\): log odds
Go from \(\pi\) to \(\log\big(\frac{\pi}{1-\pi}\big)\) using the logit transformation

Odds

Suppose there is a 70% chance it will rain tomorrow

Probability it will rain is \(\mathbf{p = 0.7}\)
Probability it won’t rain is \(\mathbf{1 - p = 0.3}\)
Odds it will rain are 7 to 3, 7:3, \(\mathbf{\frac{0.7}{0.3} \approx 2.33}\)

Are teenagers getting enough sleep?

sleep %>%
  count(Sleep7) %>%
  mutate(p = round(n / sum(n), 3))

# A tibble: 2 × 3
  Sleep7     n     p
   <int> <int> <dbl>
1      0   150 0.336
2      1   296 0.664

\(P(\text{7+ hours of sleep}) = P(Y = 1) = p = 0.664\)

\(P(\text{< 7 hours of sleep}) = P(Y = 0) = 1 - p = 0.336\)

\(P(\text{odds of 7+ hours of sleep}) = \frac{0.664}{0.336} = 1.976\)

From odds to probabilities

odds

\[\omega = \frac{\pi}{1-\pi}\]

probability

\[\pi = \frac{\omega}{1 + \omega}\]

Logistic regression

From odds to probabilities

Logistic model: log odds = \(\log\big(\frac{\pi}{1-\pi}\big) = \beta_0 + \beta_1~X\)
Odds = \(\exp\big\{\log\big(\frac{\pi}{1-\pi}\big)\big\} = \frac{\pi}{1-\pi}\)
Combining (1) and (2) with what we saw earlier

\[\text{probability} = \pi = \frac{\exp\{\beta_0 + \beta_1~X\}}{1 + \exp\{\beta_0 + \beta_1~X\}}\]

Logistic regression model

Logit form: \[\log\big(\frac{\pi}{1-\pi}\big) = \beta_0 + \beta_1~X\]

Probability form:

\[\pi = \frac{\exp\{\beta_0 + \beta_1~X\}}{1 + \exp\{\beta_0 + \beta_1~X\}}\]

Risk of coronary heart disease

This dataset is from an ongoing cardiovascular study on residents of the town of Framingham, Massachusetts. We want to use age to predict if a randomly selected adult is high risk of having coronary heart disease in the next 10 years.

high_risk:

1: High risk of having heart disease in next 10 years
0: Not high risk of having heart disease in next 10 years

age: Age at exam time (in years)

Data: `heart`

heart_disease <- read_csv(here::here("slides", "data/framingham.csv")) %>%
  select(age, TenYearCHD) %>%
  drop_na() %>% # drop observations with NAs
  mutate(high_risk = as.factor(TenYearCHD)) %>%
  select(age, high_risk)

heart_disease

# A tibble: 4,240 × 2
     age high_risk
   <dbl> <fct>
 1    39 0
 2    46 0
 3    48 0
 4    61 1
 5    46 0
 6    43 0
 7    63 1
 8    45 0
 9    52 0
10    43 0
# … with 4,230 more rows

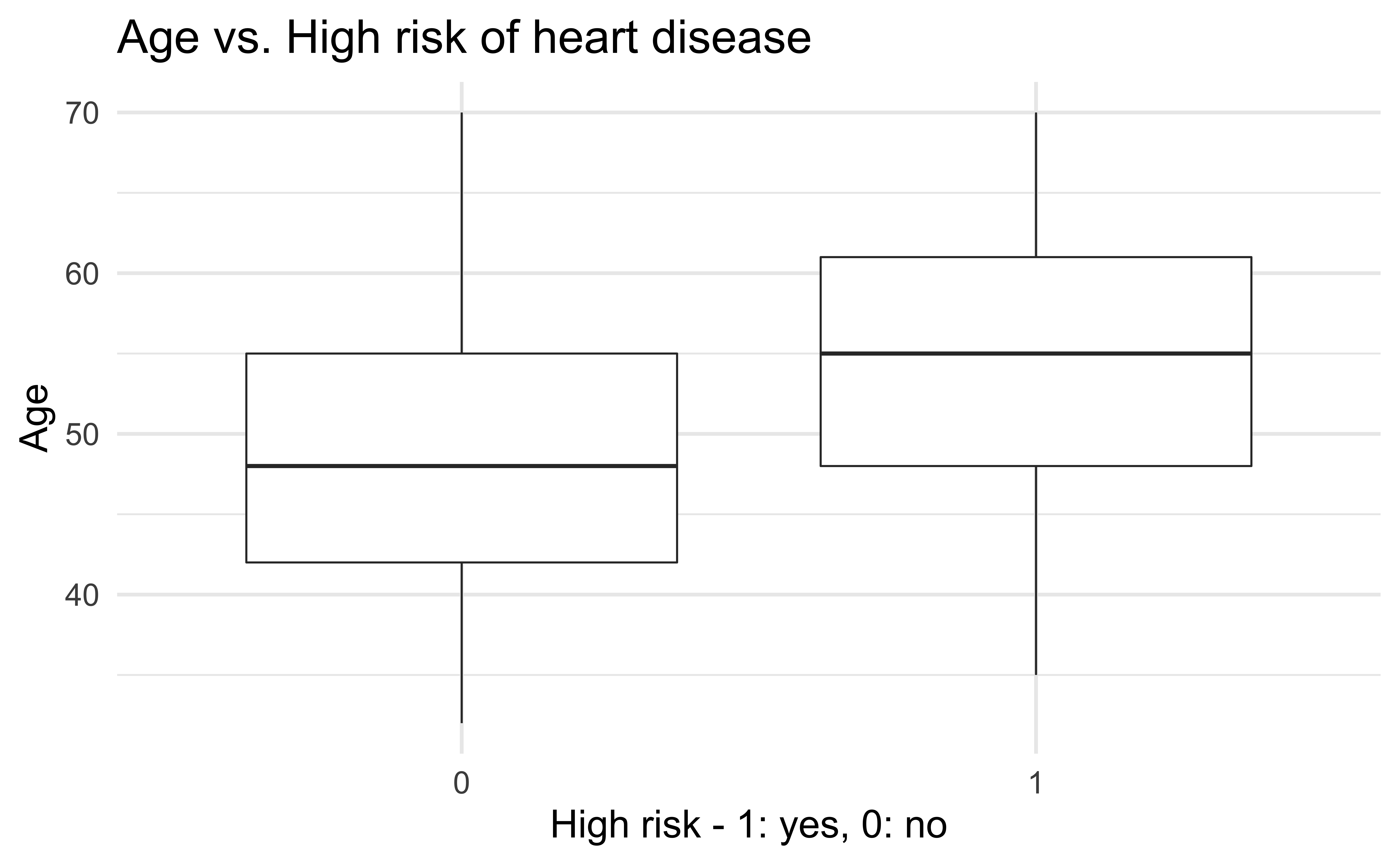

High risk vs. age

ggplot(heart_disease, aes(x = high_risk, y = age)) +
  geom_boxplot() +
  labs(x = "High risk - 1: yes, 0: no",
       y = "Age",
       title = "Age vs. High risk of heart disease")

Let’s fit the model

heart_disease_fit <- logistic_reg() %>%
  set_engine("glm") %>%
  fit(high_risk ~ age, data = heart_disease, family = "binomial")

tidy(heart_disease_fit) %>% kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	-5.561	0.284	-19.599	0
age	0.075	0.005	14.178	0

The model

tidy(heart_disease_fit) %>% kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	-5.561	0.284	-19.599	0
age	0.075	0.005	14.178	0

\[\log\Big(\frac{\hat{\pi}}{1-\hat{\pi}}\Big) = -5.561 + 0.075 \times \text{age}\] where \(\hat{\pi}\) is the predicted probability of being high risk

Predicted log odds

augment(heart_disease_fit$fit)

# A tibble: 4,240 × 8
   high_risk   age .fitted .resid .std.resid     .hat .sigma   .cooksd
   <fct>     <dbl>   <dbl>  <dbl>      <dbl>    <dbl>  <dbl>     <dbl>
 1 0            39  -2.65  -0.370     -0.370 0.000466  0.895 0.0000165
 2 0            46  -2.13  -0.475     -0.475 0.000322  0.895 0.0000192
 3 0            48  -1.98  -0.509     -0.509 0.000288  0.895 0.0000199
 4 1            61  -1.01   1.62       1.62  0.000706  0.895 0.000968
 5 0            46  -2.13  -0.475     -0.475 0.000322  0.895 0.0000192
 6 0            43  -2.35  -0.427     -0.427 0.000384  0.895 0.0000183
 7 1            63  -0.858  1.56       1.56  0.000956  0.895 0.00113
 8 0            45  -2.20  -0.458     -0.458 0.000342  0.895 0.0000189
 9 0            52  -1.68  -0.585     -0.585 0.000262  0.895 0.0000244
10 0            43  -2.35  -0.427     -0.427 0.000384  0.895 0.0000183
# … with 4,230 more rows

For observation 1

\[\text{predicted odds} = \hat{\omega} = \frac{\hat{\pi}}{1-\hat{\pi}} = \exp\{-2.650\} = 0.071\]

Predicted probabilities

predict(heart_disease_fit, new_data = heart_disease, type = "prob")

# A tibble: 4,240 × 2
   .pred_0 .pred_1
     <dbl>   <dbl>
 1   0.934  0.0660
 2   0.894  0.106
 3   0.878  0.122
 4   0.733  0.267
 5   0.894  0.106
 6   0.913  0.0870
 7   0.702  0.298
 8   0.900  0.0996
 9   0.843  0.157
10   0.913  0.0870
# … with 4,230 more rows

\[\text{predicted probabilities} = \hat{\pi} = \frac{\exp\{-2.650\}}{1 + \exp\{-2.650\}} = 0.066\]

Predicted classes

predict(heart_disease_fit, new_data = heart_disease, type = "class")

# A tibble: 4,240 × 1
   .pred_class
   <fct>
 1 0
 2 0
 3 0
 4 0
 5 0
 6 0
 7 0
 8 0
 9 0
10 0
# … with 4,230 more rows

Default prediction

For a logistic regression, the default prediction is the class.

predict(heart_disease_fit, new_data = heart_disease)

# A tibble: 4,240 × 1
   .pred_class
   <fct>
 1 0
 2 0
 3 0
 4 0
 5 0
 6 0
 7 0
 8 0
 9 0
10 0
# … with 4,230 more rows

Observed vs. predicted

What does the following table show?

predict(heart_disease_fit, new_data = heart_disease) %>%
  bind_cols(heart_disease) %>%
  count(high_risk, .pred_class)

# A tibble: 2 × 3
  high_risk .pred_class     n
  <fct>     <fct>       <int>
1 0         0            3596
2 1         0             644

Recap

Logistic regression for binary response variable
Relationship between odds and probabilities
Used logistic regression model to calculate predicted odds and probabilities

Application exercise

📋 ae-9-odds
