MLR: Inference conditions + multicollinearity

STA 210 - Summer 2022

Yunran Chen

Welcome

Topics

Conditions for inference
Multicollinearity

Computational setup

# load packages
library(tidyverse)
library(tidymodels)
library(knitr)      # for tables
library(patchwork)  # for laying out plots
library(rms)        # for vif

# set default theme and larger font size for ggplot2
ggplot2::theme_set(ggplot2::theme_minimal(base_size = 20))

Data: `rail_trail`

The Pioneer Valley Planning Commission (PVPC) collected data for ninety days from April 5, 2005 to November 15, 2005.
Data collectors set up a laser sensor, with breaks in the laser beam recording when a rail-trail user passed the data collection station.

rail_trail <- read_csv(here::here("slides", "data/rail_trail.csv"))
rail_trail

# A tibble: 90 × 7
   volume hightemp avgtemp season cloudcover precip day_type
    <dbl>    <dbl>   <dbl> <chr>       <dbl>  <dbl> <chr>
 1    501       83    66.5 Summer       7.60 0      Weekday
 2    419       73    61   Summer       6.30 0.290  Weekday
 3    397       74    63   Spring       7.5  0.320  Weekday
 4    385       95    78   Summer       2.60 0      Weekend
 5    200       44    48   Spring      10    0.140  Weekday
 6    375       69    61.5 Spring       6.60 0.0200 Weekday
 7    417       66    52.5 Spring       2.40 0      Weekday
 8    629       66    52   Spring       0    0      Weekend
 9    533       80    67.5 Summer       3.80 0      Weekend
10    547       79    62   Summer       4.10 0      Weekday
# … with 80 more rows

Source: Pioneer Valley Planning Commission via the mosaicData package.

Variables

Outcome:

volume estimated number of trail users that day (number of breaks recorded)

Predictors

hightemp daily high temperature (in degrees Fahrenheit)
avgtemp average of daily low and daily high temperature (in degrees Fahrenheit)
season one of “Fall”, “Spring”, or “Summer”
cloudcover measure of cloud cover (in oktas)
precip measure of precipitation (in inches)
day_type one of “weekday” or “weekend”

Conditions for inference

Full model

Including all available predictors

Fit:

rt_full_fit <- linear_reg() %>%
  set_engine("lm") %>%
  fit(volume ~ ., data = rail_trail)

Summarize:

tidy(rt_full_fit)

# A tibble: 8 × 5
  term            estimate std.error statistic p.value
  <chr>              <dbl>     <dbl>     <dbl>   <dbl>
1 (Intercept)        17.6      76.6      0.230 0.819
2 hightemp            7.07      2.42     2.92  0.00450
3 avgtemp            -2.04      3.14    -0.648 0.519
4 seasonSpring       35.9      33.0      1.09  0.280
5 seasonSummer       24.2      52.8      0.457 0.649
6 cloudcover         -7.25      3.84    -1.89  0.0627
7 precip            -95.7      42.6     -2.25  0.0273
8 day_typeWeekend    35.9      22.4      1.60  0.113

Augment:

rt_full_aug <- augment(rt_full_fit$fit)

Model conditions

Linearity: There is a linear relationship between the response and predictor variables.
Constant Variance: The variability about the least squares line is generally constant.
Normality: The distribution of the residuals is approximately normal.
Independence: The residuals are independent from each other.

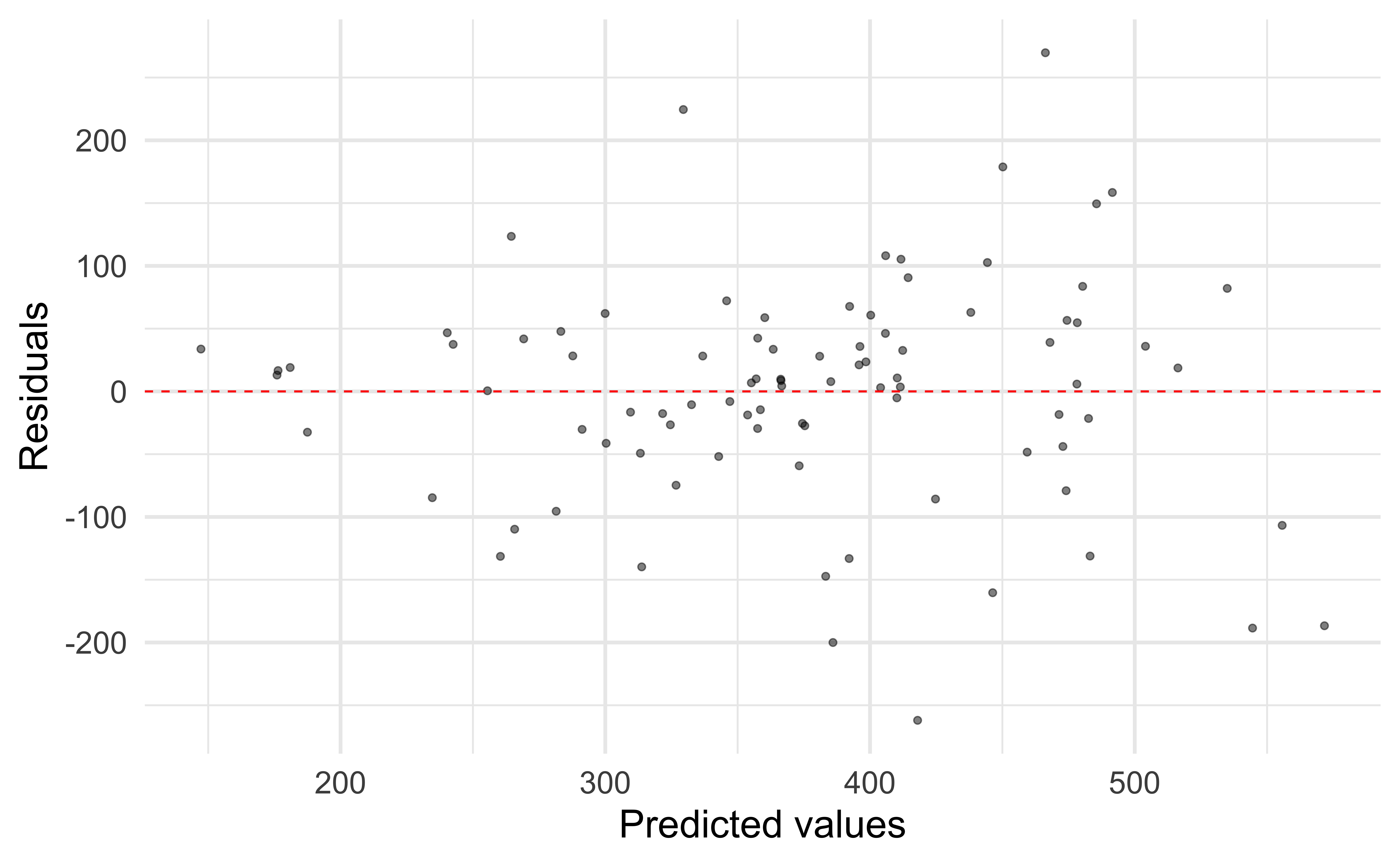

Residuals vs. predicted values

ggplot(data = rt_full_aug, aes(x = .fitted, y = .resid)) +
  geom_point(alpha = 0.5) +
  geom_hline(yintercept = 0, color = "red", linetype = "dashed") +
  labs(x = "Predicted values", y = "Residuals")

Linearity: Residuals vs. predicted

Does the linearity condition appear to be met?

Linearity: Residuals vs. predicted

If there is some pattern in the plot of residuals vs. predicted values, you can look at individual plots of residuals vs. each predictor to try to identify the issue.

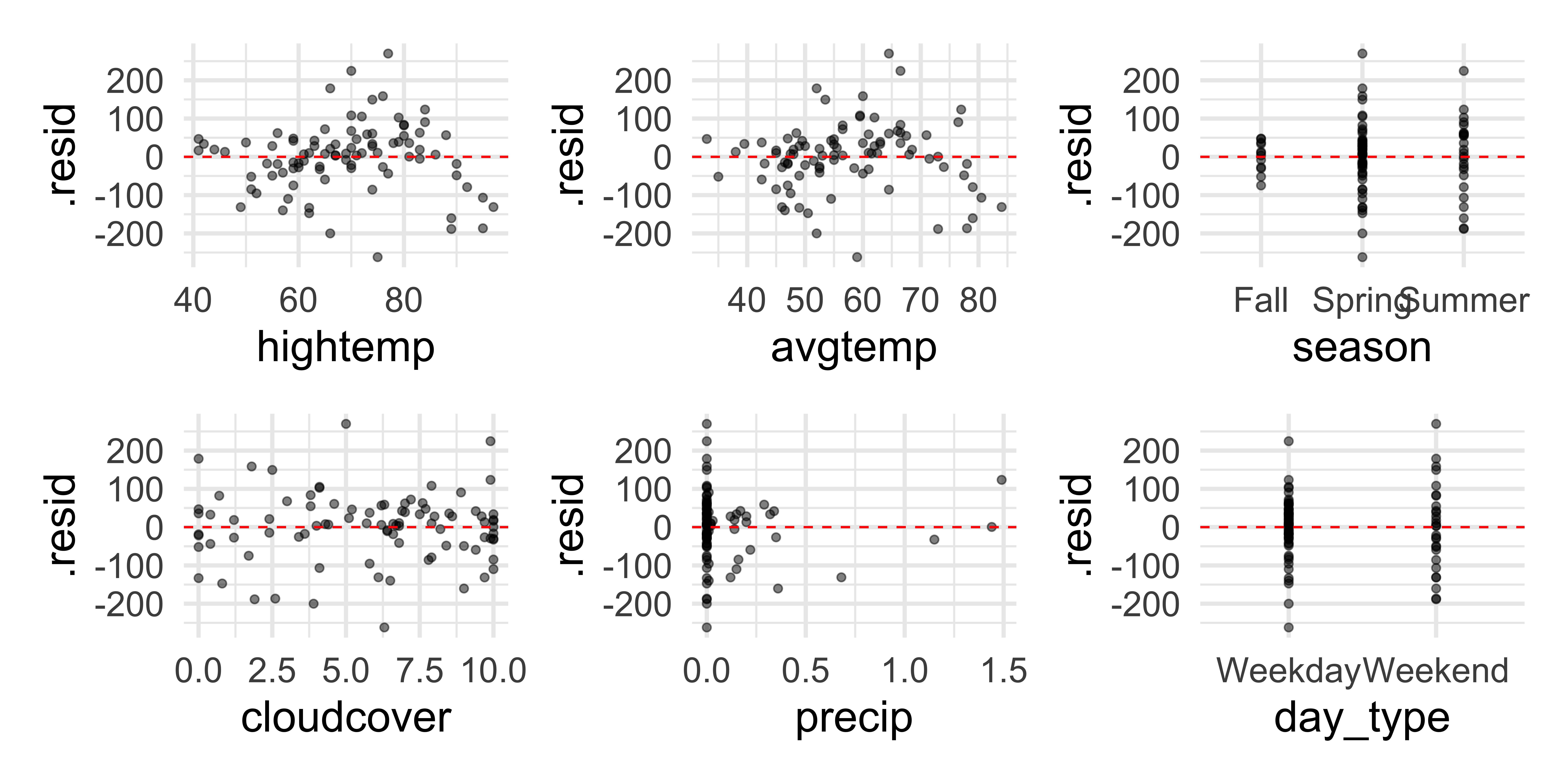

Linearity: Residuals vs. each predictor

Checking linearity

The plot of residuals vs. predicted shows a fan shaped pattern
The plots of residuals vs. high and low temperature also shows a similar pattern and vs. precipitation does not show a random scatter
The linearity condition is not satisfied.

Checking constant variance

Does the constant variance condition appear to be satisfied?

Checking constant variance

The vertical spread of the residuals is not constant across the plot.
The constant variance condition is not satisfied.

Checking normality

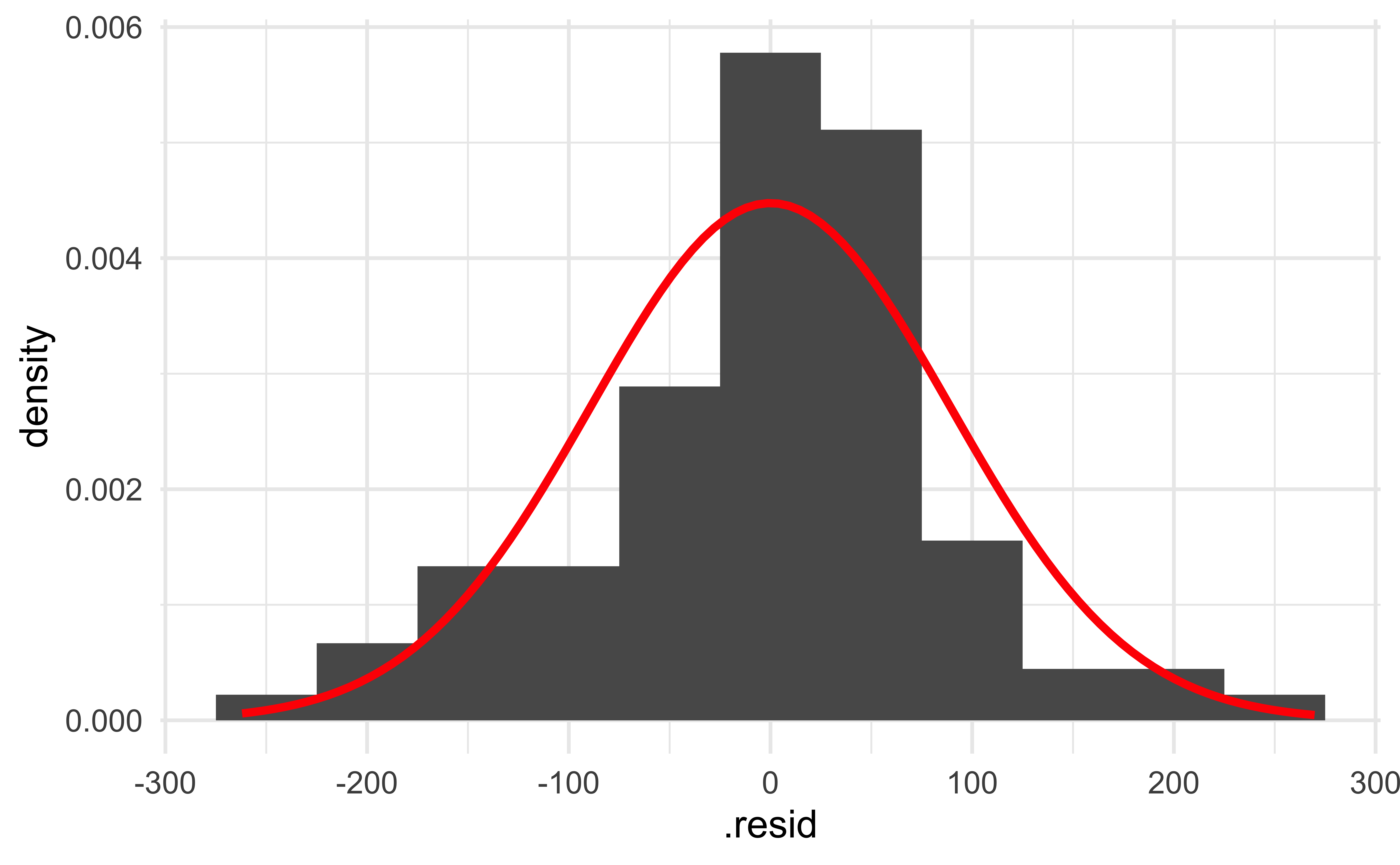

Overlaying a density plot on a histogram

Overlay density plot on a histogram +geom_density()
Overlay a normal density plot on a histogram to compare whether normal assumption is reasonable (adjust bin width)

ggplot(rt_full_aug, aes(.resid)) +
  geom_histogram(aes(y = after_stat(density)), binwidth = 50) +
  stat_function(
    fun = dnorm,
    args = list(mean = mean(rt_full_aug$.resid), sd = sd(rt_full_aug$.resid)),
    lwd = 2,
    color = "red"
  )

Checking independence

We can often check the independence condition based on the context of the data and how the observations were collected.
If the data were collected in a particular order, examine a scatterplot of the residuals versus order in which the data were collected.
If there is a grouping variable lurking in the background, check the residuals based on that grouping variable.

Checking independence

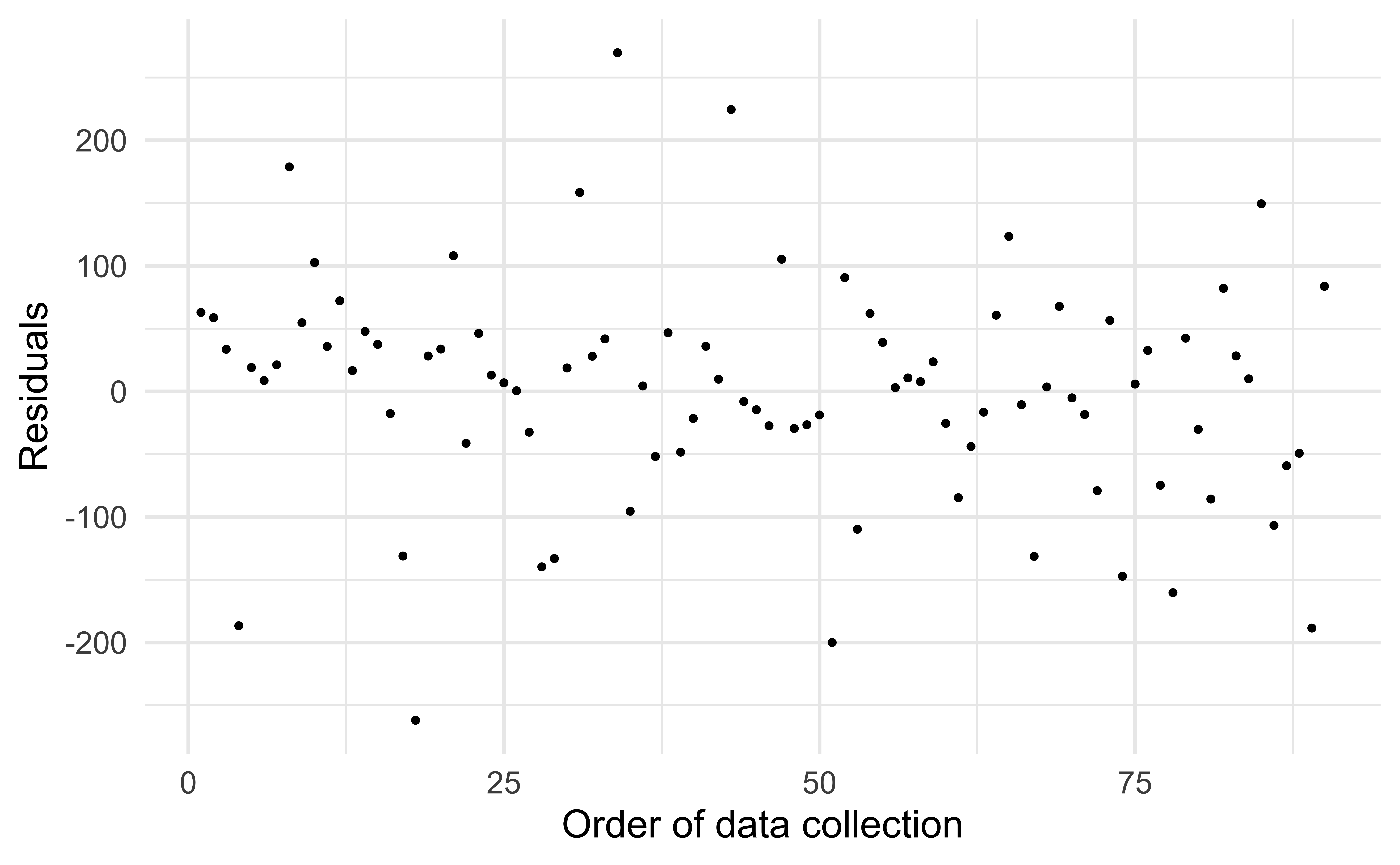

Residuals vs. order of data collection:

ggplot(rt_full_aug, aes(y = .resid, x = 1:nrow(rt_full_aug))) +
  geom_point() +
  labs(x = "Order of data collection", y = "Residuals")

Checking independence

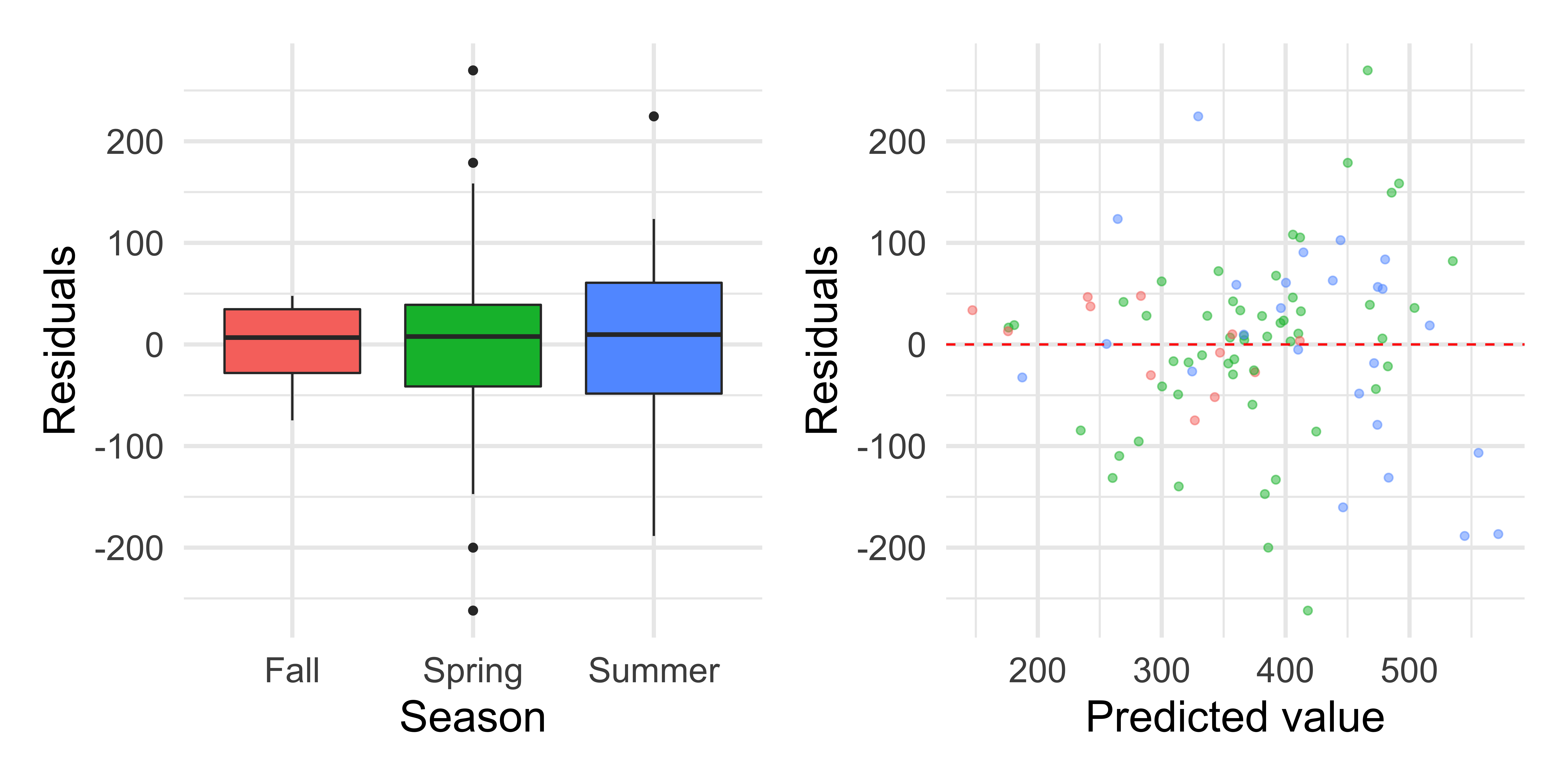

Residuals vs. predicted values by season: overlap a lot

Checking independence

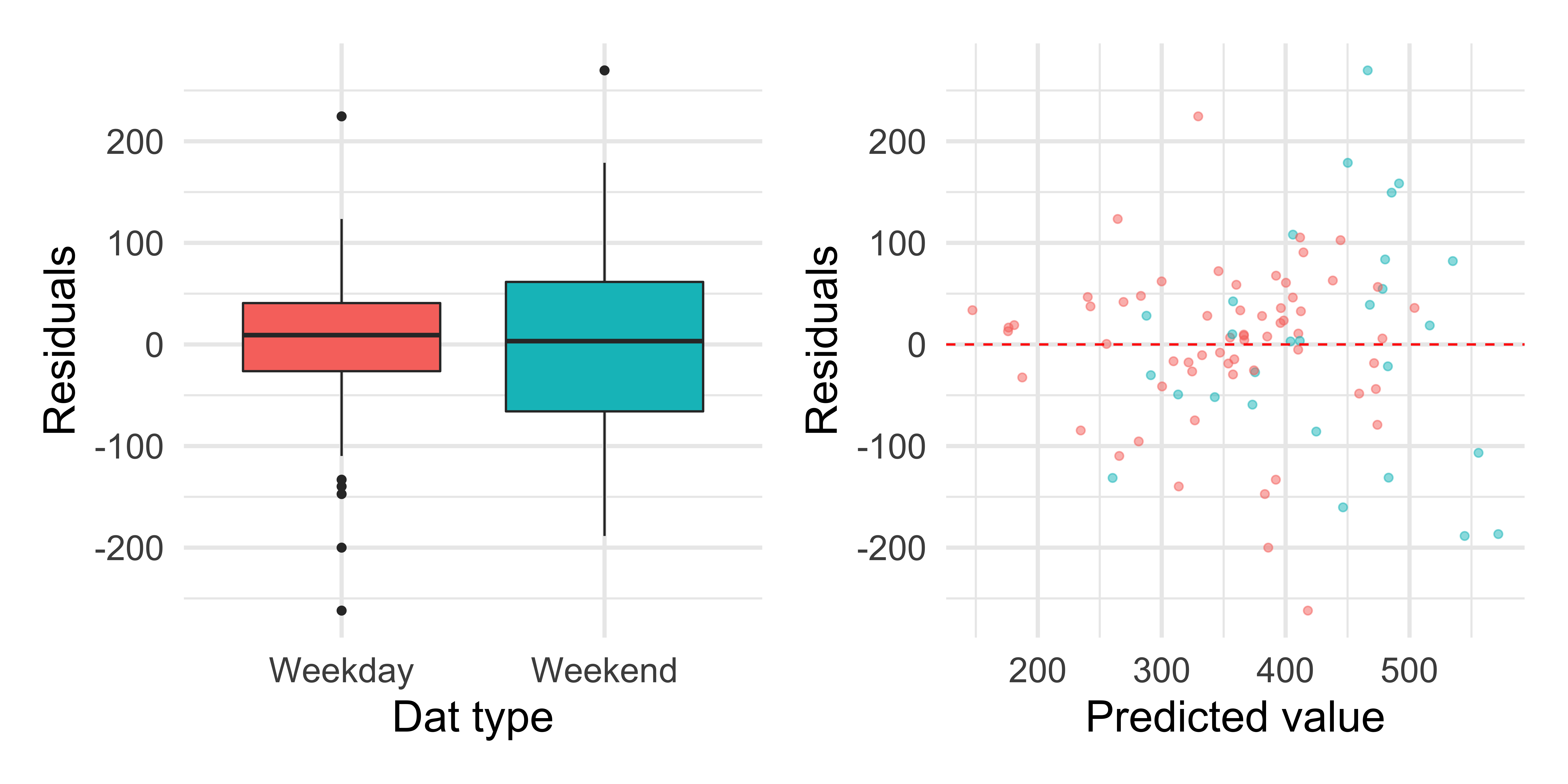

Residuals vs. predicted values by day_type: overlap a lot

Checking independence

No clear pattern in the residuals vs. order of data collection plot and the model predicts similarly for seasons and day types. Independence condition appears to be satisfied, as far as we can evaluate it.

Multicollinearity

Why multicollinearity is a problem

We can’t include two variables that have a perfect linear association with each other
Mathematically, cannot find unique estimates for the model coefficients - - non-identifiability

Example

Suppose the true population regression equation is \(y = 3 + 4x\)

Suppose we try estimating that equation using a model with variables \(x\) and \(z = x/10\)

\[ \begin{aligned}\hat{y}&= \hat{\beta}_0 + \hat{\beta}_1x + \hat{\beta}_2z\\ &= \hat{\beta}_0 + \hat{\beta}_1x + \hat{\beta}_2\frac{x}{10}\\ &= \hat{\beta}_0 + \bigg(\hat{\beta}_1 + \frac{\hat{\beta}_2}{10}\bigg)x \end{aligned} \]

Example

\[\hat{y} = \hat{\beta}_0 + \bigg(\hat{\beta}_1 + \frac{\hat{\beta}_2}{10}\bigg)x\]

We can set \(\hat{\beta}_1\) and \(\hat{\beta}_2\) to any two numbers such that \(\hat{\beta}_1 + \frac{\hat{\beta}_2}{10} = 4\)
Therefore, we are unable to choose the “best” combination of \(\hat{\beta}_1\) and \(\hat{\beta}_2\)

Why multicollinearity is a problem

When we have almost perfect collinearities (i.e. highly correlated predictor variables), the standard errors for our regression coefficients inflate (uncertainty on identification)
Lose precision in our estimates of the regression coefficients
Impedes model inference or prediction

Will not influence the point estimate

Geometric explanation for multiple regression (for model with 2 predictors):

Data points locate in a 3D space expanded by (y,x1,x2).
MLR is a line go through the center of the data “cloud”
If we slice the space with constant \(x_1\), we obtain projection of the regression line to the plane \(x_2=c\). The projection is a line with the slope \(\beta_1\). So \(\beta_1\) is interpreted as: if \(x_1\) increases by 1 unit, we expect \(y\) increases by \(\beta_1\), on average, hold other constant.
If \(x_1\) and \(x_2\) linear related, it is like rotate the line on \((y,x_1)\) space to \((y,x_1,x_2)\) space. So add \(x_2\) will not change the point estimate of \(\beta_1\) much. But due to the nonidentifiability, the se will inflate.

Detecting Multicollinearity

Multicollinearity may occur when…

There are very high correlations \((r > 0.9)\) among two or more predictor variables, especially when the sample size is small
One (or more) predictor variables is an almost perfect linear combination of the others
Include a quadratic in the model mean-centering the variable first
Including interactions between two or more continuous variables

Detecting multicollinearity in the EDA

Look at a correlation matrix of the predictor variables, including all indicator variables
- Look out for values close to 1 or -1
Look at a scatterplot matrix of the predictor variables
- Look out for plots that show a relatively linear relationship
Look at variables that have unreasonable coefficients (based on context)

Detecting Multicollinearity (VIF)

Variance Inflation Factor (VIF): Measure of multicollinearity in the regression model

\[VIF(\hat{\beta}_j) = \frac{1}{1-R^2_{X_j|X_{-j}}}\]

where \(R^2_{X_j|X_{-j}}\) is the proportion of variation \(X\) that is explained by the linear combination of the other explanatory variables in the model.

Detecting Multicollinearity (VIF)

Typically \(VIF > 10\) indicates concerning multicollinearity

Variables with similar values of VIF are typically the ones correlated with each other

Use the vif() function in the rms R package to calculate VIF

VIF For SAT Model

vif(rt_full_fit$fit)

       hightemp         avgtemp    seasonSpring    seasonSummer      cloudcover
      10.259978       13.086175        2.751577        5.841985        1.587485
         precip day_typeWeekend
       1.295352        1.125741

hightemp and avgtemp are correlated. We need to remove one of these variables and refit the model.

Model without `hightemp`

m1 <- linear_reg() %>%
  set_engine("lm") %>%
  fit(volume ~ . - hightemp, data = rail_trail)

m1 %>% tidy() %>%
  kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	76.071	77.204	0.985	0.327
avgtemp	6.003	1.583	3.792	0.000
seasonSpring	34.555	34.454	1.003	0.319
seasonSummer	13.531	55.024	0.246	0.806
cloudcover	-12.807	3.488	-3.672	0.000
precip	-110.736	44.137	-2.509	0.014
day_typeWeekend	48.420	22.993	2.106	0.038

glance(m1) %>%
  select(adj.r.squared, AIC, BIC)

# A tibble: 1 × 3
  adj.r.squared   AIC   BIC
          <dbl> <dbl> <dbl>
1         0.421 1088. 1108.

Model without `avgtemp`

m2 <- linear_reg() %>%
  set_engine("lm") %>%
  fit(volume ~ . - avgtemp, data = rail_trail)

m2 %>% tidy() %>%
  kable(digits = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	8.421	74.992	0.112	0.911
hightemp	5.696	1.164	4.895	0.000
seasonSpring	31.239	32.082	0.974	0.333
seasonSummer	9.424	47.504	0.198	0.843
cloudcover	-8.353	3.435	-2.431	0.017
precip	-98.904	42.137	-2.347	0.021
day_typeWeekend	37.062	22.280	1.663	0.100

glance(m2) %>%
  select(adj.r.squared, AIC, BIC)

# A tibble: 1 × 3
  adj.r.squared   AIC   BIC
          <dbl> <dbl> <dbl>
1         0.473 1079. 1099.

Choosing a model

Model with hightemp removed:

adj.r.squared	AIC	BIC
0.42	1087.5	1107.5

Model with avgtemp removed:

adj.r.squared	AIC	BIC
0.47	1079.05	1099.05

Based on Adjusted \(R^2\), AIC, and BIC, the model with avgtemp removed is a better fit. Therefore, we choose to remove avgtemp from the model and leave hightemp in the model to deal with the multicollinearity.

Recap

Conditions for inference
Multicollinearity
